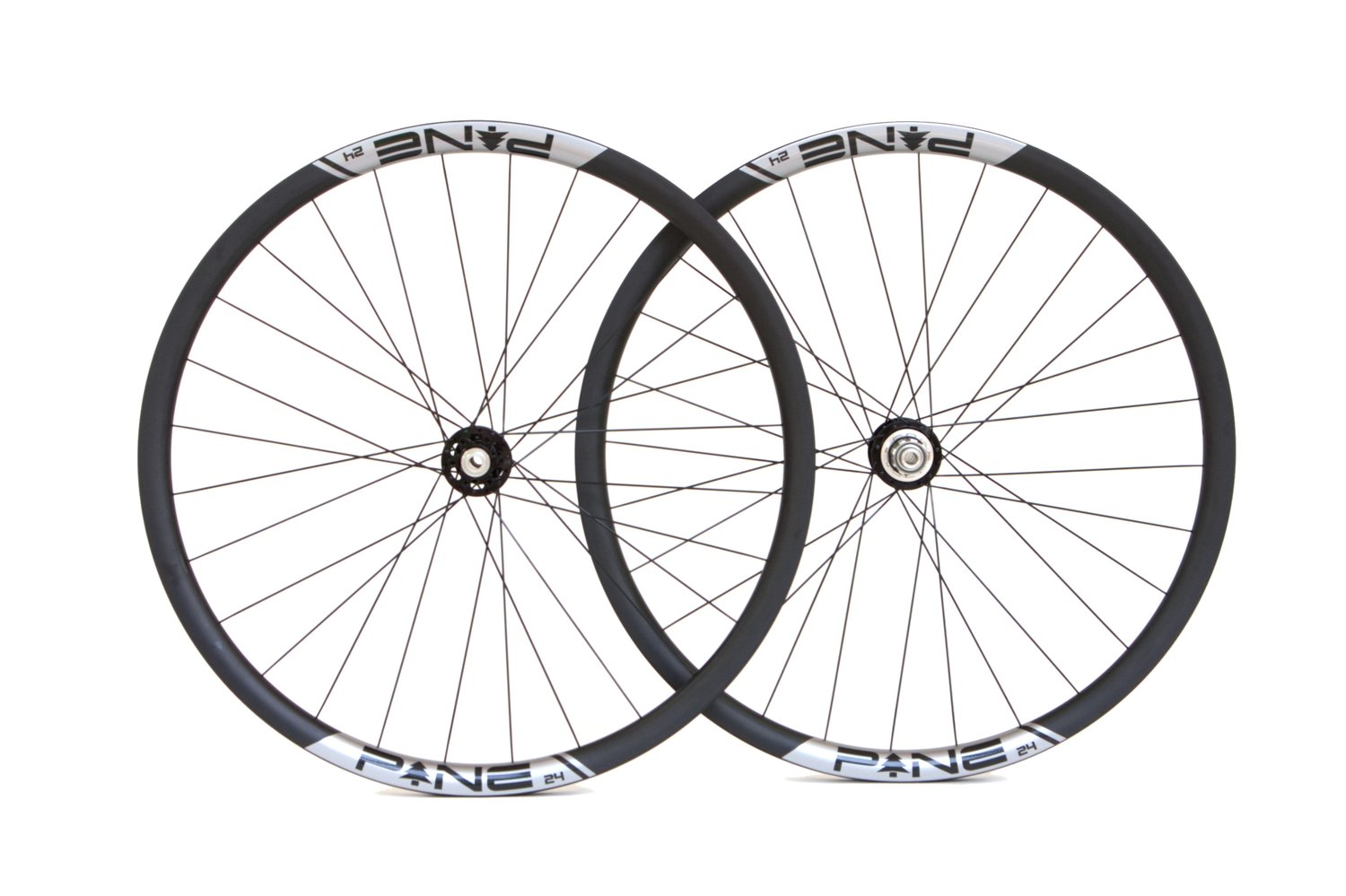

PINE 24 Gravel - Carbon Wheelset
GRAVEL wheelset without limitations
The new CX Gravel wheelset is based on our PINE 24 MTB rim laced with 28 DT Swiss Aero Comp spokes and internal nipples for extra strength and durability. Laced on Industry Nine TORCH J-Band hubs with endless possibility axles options and 11 colors to choose from. This wheelset will suit any CX or Gravel bike to provide the ultimate ride for any rider.
Featuring all of the advantages of the Torch hub mechanism-low drag, low weight, and the ultimate in axle compatibility- tied into a traditional, "Classic" hub. Torch Classic hubs are the solution for any rider seeking an approachable flanged hub to build into a no-compromise, high-performance wheel-set.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
The Torch still features Industry Nines famous 120 point, 3 degree engagement, 6 pawl mechanism. This superior engagement means the hub picks up every 3 degrees of rotation for minimal lag when you are putting power down on the pedals.
All our wheel sets are laced on Industry Nine J-Bend Hubs using DT Aero Comp Black or SAPIM CX-Ray Spokes with internal aluminum nipples.
Industry Nine UST Aluminum 4g valves are available in 12 colours!
PINE 24 GRAVEL SPECS:
| Weight: |
set: 1384g front: 626g rear: 758g |
Rim: |
24mm inner width 30mm outer width Carbon rims T700, Hookles, Tubeless ready, UD Finish |
| Front Axles: |
QRx100, 9x100mm, 12x100mm, 15x100mm |
Rear Axles: |
QRx135 HG/XD-R, 10x135mm, 12x135mm, 12x142mm |
| Hub: |
Industry Nine ISO 6 Bolt or Centerlock 11 colors |
Spoke: |
DT SWISS Competition 2.0/1.8/2.0 Black or Sapim CX Ray 2.0/0.9/2.2/2 Bladed Black |
| Driver: |
Torch Road HG11, Torch Road Campy Torch Road XD-R or Torch Road HG11 Steel 3 degree engagement, 6 pawl freehub, 120 point drivering |
Spoke Count: |
28 |
| Tire Width: |
2.1" - 2.5" |
Wheels size: |
700c" |
| Rider Weight: | Recommended 118kg/260lbs | Purpose: | CX, Gravel, Allroad |
Limited 5 Year Warranty on Wheels and Accessories.
